R67減速機重量：R67減速機重量25Kg，R67減速機配電機重量分別如下：

R67減速機配0.12KW電機重量30.5Kg,R67減速機配0.18KW電機重量31Kg,R67減速機配0.25KW電機重量35Kg,R67減速機配0.37KW電機重量35.5Kg,R67減速機配0.55KW電機重量41Kg,R67減速機配0.75KW電機重量42Kg,R67減速機配1.1KW電機重量45Kg,R67減速機配1.5KW電機重量48Kg,R67減速機配2.2KW電機重量57Kg,R67減速機配3KW電機重量60Kg,R67減速機配4KW電機重量71Kg,R67減速機配5.5KW電機重量85Kg,R67減速機配7.5KW電機重量98Kg。

R67減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R67減速機M1安裝加1.1/2.3升，R67減速機M2安裝加2.4/3.2升，R67減速機M3安裝加2.8升，R67減速機M4安裝加2.9升，R67減速機M5安裝加1.8升，R67減速機M6安裝加2升。

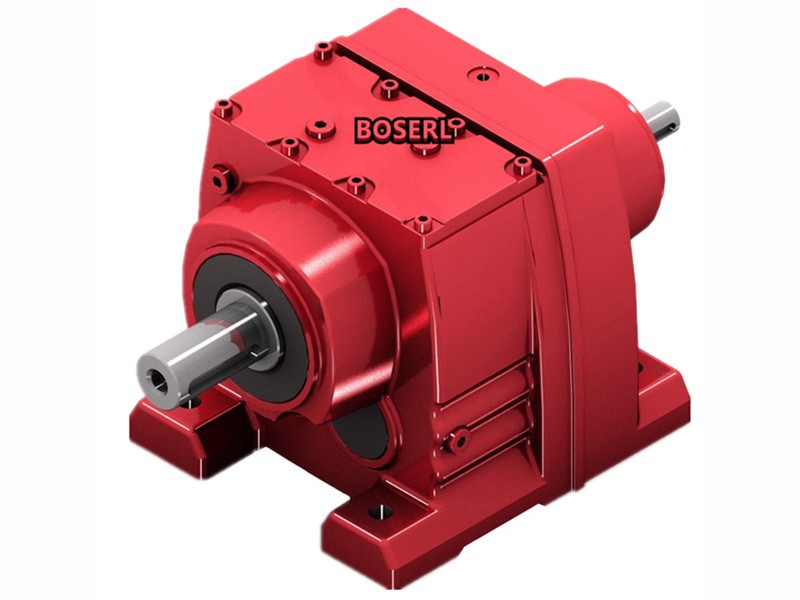

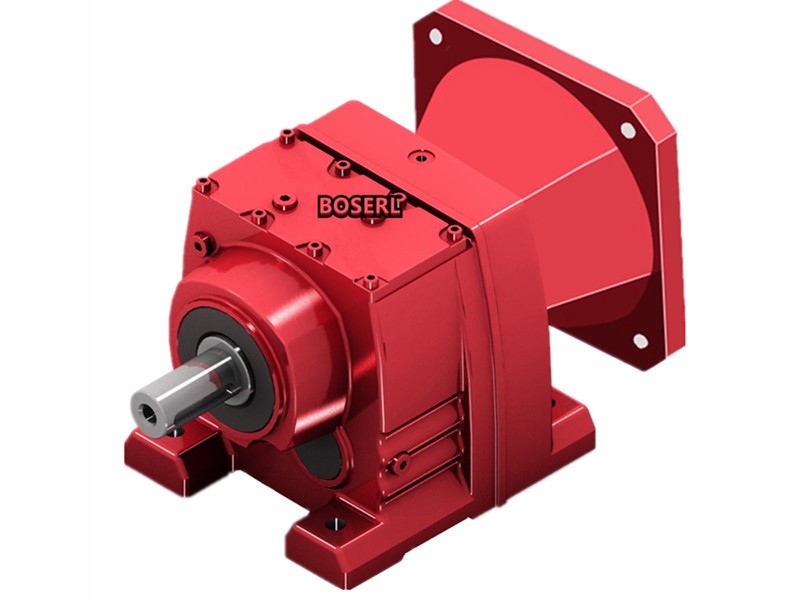

R67減速機實物圖：圖一為R67底腳安裝斜齒輪減速機，圖二RF67法蘭立式安裝斜齒輪減速機，圖三為RX67減速機不同心臥式底腳安裝，圖四為RXF67減速機不同心立式法蘭安裝。

R67減速機型號表示方法：

R67減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入配置。

R67減速機型號結構R67-B7.5KW-4P-減速比-安裝方式-接線盒位置。

R67減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R67減速機結構圖：齒輪減速機

R67減速機參數：同軸減速機

R67減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R67配0.12KW,R67配0.18KW,R67配0.25KW,R67配0.37KW,R67配0.55KW,R67配0.75KW,R67配1.1KW,R67配1.5KW,R67配2.2KW,R67配3KW,R67配4KW,R67配5.5KW,R67配7.5KW。

R67減速機減速比4.29比,4.93比,5.70比,6.27比,7.36比,7.97比,8.7比,10比,11.54比,12.70比,14.91比,15.79比,17.95比,19.89比,23.44比,26.72比,28.13比,28.83比,32.27比,37.50比,39.88比,46.29比,51.56比,56.89比,61.26比,69.75比,74.17比,86.11比,95.91比,105.83比,113.94比,128.97比,137.67比,158.14比,184.07比,199.81比。

R67減速機輸出轉速7轉,7.6轉,8.9轉,10轉,11轉,12轉,13轉,15轉,16轉,19轉,20轉,23轉,25轉,27轉,30轉,35轉,37轉,43轉,49轉,50轉,52轉,60轉,70轉,78轉,89轉,94轉,110轉,121轉,140轉,161轉,180轉,190轉,223轉,246轉,284轉,326轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R67減速機負載扭矩270N.m,290N.m,310N.m,330N.m,370N.m,380N.m,400N.m,470N.m,500N.m,520N.m,540N.m,550N.m,560N.m,570N.m,580N.m,590N.m,600N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

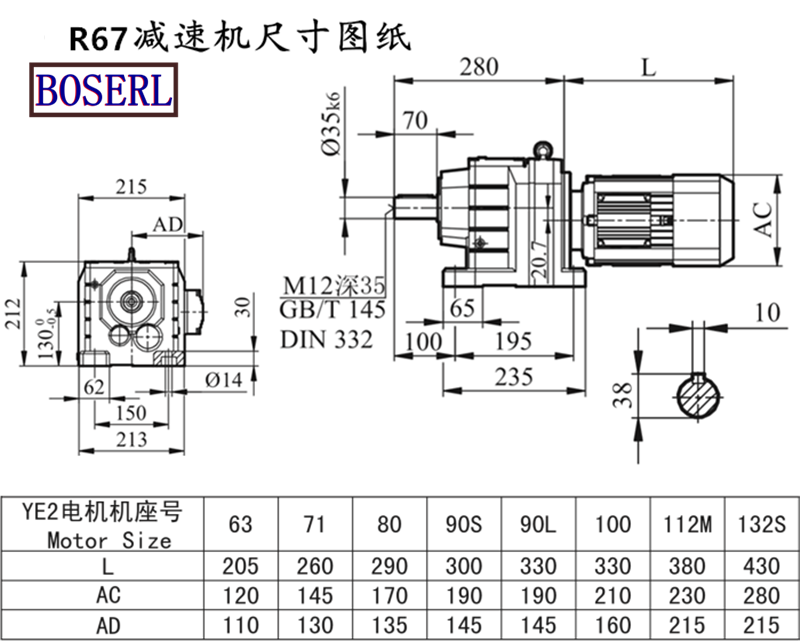

R67減速機尺寸圖紙：高212*寬213*長280（帶輸出軸）R系列減速機

R67減速機型號:

R67AQA80,R67AQA100,R67AQA115,R67AQA140,R67AQA160,R67AQA190,R67AQH80,R67AQH100,R67AQH115,R67AQH140,R67AQH160,R67AQH190,JRTR67-Y0.12KW,JRTR67-Y0.18KW,JRTR67-Y0.25KW,JRTR67-Y0.37KW,JRTR67-Y0.55KW,JRTR67-Y0.75KW,JRTR67-Y1.1KW,JRTR67-Y1.5KW,JRTR67-Y100M4,JRTR67-Y112M4,JRTR67-Y132M4,JRTR67-Y2.2KW,JRTR67-Y3KW,JRTR67-Y4KW,JRTR67-Y5.5KW,JRTR67-Y63M4,JRTR67-Y7.5KW,JRTR67-Y71M4,JRTR67-Y80M4,JRTR67-Y90M4,JRTR67-YEJ100M4,JRTR67-YEJ112M4,JRTR67-YEJ132M4,JRTR67-YEJ63M4,JRTR67-YEJ71M4,JRTR67-YEJ80M4,JRTR67-YEJ90M4,JRTR67-YS100M4,JRTR67-YS112M4,JRTR67-YS132M4,JRTR67-YS63M4,JRTR67-YS71M4,JRTR67-YS80M4,JRTR67-YS90M4,JRTR67-YVP100M4,JRTR67-YVP112M4,JRTR67-YVP132M4,JRTR67-YVP63M4,JRTR67-YVP71M4,JRTR67-YVP80M4,JRTR67-YVP90M4,JRTR67-YVPEJ100M4,JRTR67-YVPEJ112M4,JRTR67-YVPEJ132M4,JRTR67-YVPEJ63M4,JRTR67-YVPEJ71M4,JRTR67-YVPEJ80M4,JRTR67-YVPEJ90M4,EWR67-Y0.12KW,EWR67-Y0.18KW,EWR67-Y0.25KW,EWR67-Y0.37KW,EWR67-Y0.55KW,EWR67-Y0.75KW,EWR67-Y1.1KW,EWR67-Y1.5KW,EWR67-Y100M4,EWR67-Y112M4,EWR67-Y132M4,EWR67-Y2.2KW,EWR67-Y3KW,EWR67-Y4KW,EWR67-Y5.5KW,EWR67-Y63M4,EWR67-Y7.5KW,EWR67-Y71M4,EWR67-Y80M4,EWR67-Y90M4,EWR67-YEJ100M4,EWR67-YEJ112M4,EWR67-YEJ132M4,EWR67-YEJ63M4,EWR67-YEJ71M4,EWR67-YEJ80M4,EWR67-YEJ90M4,EWR67-YS100M4,EWR67-YS112M4,EWR67-YS132M4,EWR67-YS63M4,EWR67-YS71M4,EWR67-YS80M4,EWR67-YS90M4,EWR67-YVP100M4,EWR67-YVP112M4,EWR67-YVP132M4,EWR67-YVP63M4,EWR67-YVP71M4,EWR67-YVP80M4,EWR67-YVP90M4,EWR67-YVPEJ100M4,EWR67-YVPEJ112M4,EWR67-YVPEJ132M4,EWR67-YVPEJ63M4,EWR67-YVPEJ71M4,EWR67-YVPEJ80M4,EWR67-YVPEJ90M4,SLR67-Y0.12KW,SLR67-Y0.18KW,SLR67-Y0.25KW,SLR67-Y0.37KW,SLR67-Y0.55KW,SLR67-Y0.75KW,SLR67-Y1.1KW,SLR67-Y1.5KW,SLR67-Y100M4,SLR67-Y112M4,SLR67-Y132M4,SLR67-Y2.2KW,SLR67-Y3KW,SLR67-Y4KW,SLR67-Y5.5KW,SLR67-Y63M4,SLR67-Y7.5KW,SLR67-Y71M4,SLR67-Y80M4,SLR67-Y90M4,SLR67-YEJ100M4,SLR67-YEJ112M4,SLR67-YEJ132M4,SLR67-YEJ63M4,SLR67-YEJ71M4,SLR67-YEJ80M4,SLR67-YEJ90M4,SLR67-YS100M4,SLR67-YS112M4,SLR67-YS132M4,SLR67-YS63M4,SLR67-YS71M4,SLR67-YS80M4,SLR67-YS90M4,SLR67-YVP100M4,SLR67-YVP112M4,SLR67-YVP132M4,SLR67-YVP63M4,SLR67-YVP71M4,SLR67-YVP80M4,SLR67-YVP90M4,SLR67-YVPEJ100M4,SLR67-YVPEJ112M4,SLR67-YVPEJ132M4,SLR67-YVPEJ63M4,SLR67-YVPEJ71M4,SLR67-YVPEJ80M4,SLR67-YVPEJ90M4,DSZR67-Y0.12KW,DSZR67-Y0.18KW,DSZR67-Y0.25KW,DSZR67-Y0.37KW,DSZR67-Y0.55KW,DSZR67-Y0.75KW,DSZR67-Y1.1KW,DSZR67-Y1.5KW,DSZR67-Y100M4,DSZR67-Y112M4,DSZR67-Y132M4,DSZR67-Y2.2KW,DSZR67-Y3KW,DSZR67-Y4KW,DSZR67-Y5.5KW,DSZR67-Y63M4,DSZR67-Y7.5KW,DSZR67-Y71M4,DSZR67-Y80M4,DSZR67-Y90M4,DSZR67-YEJ100M4,DSZR67-YEJ112M4,DSZR67-YEJ132M4,DSZR67-YEJ63M4,DSZR67-YEJ71M4,DSZR67-YEJ80M4,DSZR67-YEJ90M4,DSZR67-YS100M4,DSZR67-YS112M4,DSZR67-YS132M4,DSZR67-YS63M4,DSZR67-YS71M4,DSZR67-YS80M4,DSZR67-YS90M4,DSZR67-YVP100M4,DSZR67-YVP112M4,DSZR67-YVP132M4,DSZR67-YVP63M4,DSZR67-YVP71M4,DSZR67-YVP80M4,DSZR67-YVP90M4,DSZR67-YVPEJ100M4,DSZR67-YVPEJ112M4,DSZR67-YVPEJ132M4,DSZR67-YVPEJ63M4,DSZR67-YVPEJ71M4,DSZR67-YVPEJ80M4,DSZR67-YVPEJ90M4,BR67-Y0.12KW,BR67-Y0.18KW,BR67-Y0.25KW,BR67-Y0.37KW,BR67-Y0.55KW,BR67-Y0.75KW,BR67-Y1.1KW,BR67-Y1.5KW,BR67-Y100M4,BR67-Y112M4,BR67-Y132M4,BR67-Y2.2KW,BR67-Y3KW,BR67-Y4KW,BR67-Y5.5KW,BR67-Y63M4,BR67-Y7.5KW,BR67-Y71M4,BR67-Y80M4,BR67-Y90M4,BR67-YEJ100M4,BR67-YEJ112M4,BR67-YEJ132M4,BR67-YEJ63M4,BR67-YEJ71M4,BR67-YEJ80M4,BR67-YEJ90M4,BR67-YS100M4,BR67-YS112M4,BR67-YS132M4,BR67-YS63M4,BR67-YS71M4,BR67-YS80M4,BR67-YS90M4,BR67-YVP100M4,BR67-YVP112M4,BR67-YVP132M4,BR67-YVP63M4,BR67-YVP71M4,BR67-YVP80M4,BR67-YVP90M4,BR67-YVPEJ100M4,BR67-YVPEJ112M4,BR67-YVPEJ132M4,BR67-YVPEJ63M4,BR67-YVPEJ71M4,BR67-YVPEJ80M4,BR67-YVPEJ90M4,GR67-Y0.12KW,GR67-Y0.18KW,GR67-Y0.25KW,GR67-Y0.37KW,GR67-Y0.55KW,GR67-Y0.75KW,GR67-Y1.1KW,GR67-Y1.5KW,GR67-Y100M4,GR67-Y112M4,GR67-Y132M4,GR67-Y2.2KW,GR67-Y3KW,GR67-Y4KW,GR67-Y5.5KW,GR67-Y63M4,GR67-Y7.5KW,GR67-Y71M4,GR67-Y80M4,GR67-Y90M4,GR67-YEJ100M4,GR67-YEJ112M4,GR67-YEJ132M4,GR67-YEJ63M4,GR67-YEJ71M4,GR67-YEJ80M4,GR67-YEJ90M4,GR67-YS100M4,GR67-YS112M4,GR67-YS132M4,GR67-YS63M4,GR67-YS71M4,GR67-YS80M4,GR67-YS90M4,GR67-YVP100M4,GR67-YVP112M4,GR67-YVP132M4,GR67-YVP63M4,GR67-YVP71M4,GR67-YVP80M4,GR67-YVP90M4,GR67-YVPEJ100M4,GR67-YVPEJ112M4,GR67-YVPEJ132M4,GR67-YVPEJ63M4,GR67-YVPEJ71M4,GR67-YVPEJ80M4,GR67-YVPEJ90M4,RC67-Y0.12KW,RC67-Y0.18KW,RC67-Y0.25KW,RC67-Y0.37KW,RC67-Y0.55KW,RC67-Y0.75KW,RC67-Y1.1KW,RC67-Y1.5KW,RC67-Y100M4,RC67-Y112M4,RC67-Y132M4,RC67-Y2.2KW,RC67-Y3KW,RC67-Y4KW,RC67-Y5.5KW,RC67-Y63M4,RC67-Y7.5KW,RC67-Y71M4,RC67-Y80M4,RC67-Y90M4,RC67-YEJ100M4,RC67-YEJ112M4,RC67-YEJ132M4,RC67-YEJ63M4,RC67-YEJ71M4,RC67-YEJ80M4,RC67-YEJ90M4,RC67-YS100M4,RC67-YS112M4,RC67-YS132M4,RC67-YS63M4,RC67-YS71M4,RC67-YS80M4,RC67-YS90M4,RC67-YVP100M4,RC67-YVP112M4,RC67-YVP132M4,RC67-YVP63M4,RC67-YVP71M4,RC67-YVP80M4,RC67-YVP90M4,RC67-YVPEJ100M4,RC67-YVPEJ112M4,RC67-YVPEJ132M4,RC67-YVPEJ63M4,RC67-YVPEJ71M4,RC67-YVPEJ80M4,RC67-YVPEJ90M4,MTD67-Y0.12KW,MTD67-Y0.18KW,MTD67-Y0.25KW,MTD67-Y0.37KW,MTD67-Y0.55KW,MTD67-Y0.75KW,MTD67-Y1.1KW,MTD67-Y1.5KW,MTD67-Y100M4,MTD67-Y112M4,MTD67-Y132M4,MTD67-Y2.2KW,MTD67-Y3KW,MTD67-Y4KW,MTD67-Y5.5KW,MTD67-Y63M4,MTD67-Y7.5KW,MTD67-Y71M4,MTD67-Y80M4,MTD67-Y90M4,MTD67-YEJ100M4,MTD67-YEJ112M4,MTD67-YEJ132M4,MTD67-YEJ63M4,MTD67-YEJ71M4,MTD67-YEJ80M4,MTD67-YEJ90M4,MTD67-YS100M4,MTD67-YS112M4,MTD67-YS132M4,MTD67-YS63M4,MTD67-YS71M4,MTD67-YS80M4,MTD67-YS90M4,MTD67-YVP100M4,MTD67-YVP112M4,MTD67-YVP132M4,MTD67-YVP63M4,MTD67-YVP71M4,MTD67-YVP80M4,MTD67-YVP90M4,MTD67-YVPEJ100M4,MTD67-YVPEJ112M4,MTD67-YVPEJ132M4,MTD67-YVPEJ63M4,MTD67-YVPEJ71M4,MTD67-YVPEJ80M4,MTD67-YVPEJ90M4,WXR67-WSS0.12KW,WXR67-WSS0.18KW,WXR67-WSS0.25KW,WXR67-WSS0.37KW,WXR67-WSS0.55KW,WXR67-WSS0.75KW,WXR67-WSS1.1KW,WXR67-WSS1.5KW,WXR67-WSS100M4,WXR67-WSS112M4,WXR67-WSS132M4,WXR67-WSS2.2KW,WXR67-WSS3KW,WXR67-WSS4KW,WXR67-WSS5.5KW,WXR67-WSS63M4,WXR67-WSS7.5KW,WXR67-WSS71M4,WXR67-WSS80M4,WXR67-WSS90M4,WXR67-WSSB100M4,WXR67-WSSB112M4,WXR67-WSSB132M4,WXR67-WSSB63M4,WXR67-WSSB71M4,WXR67-WSSB80M4,WXR67-WSSB90M4,WXR67-WSSVP100M4,WXR67-WSSVP112M4,WXR67-WSSVP132M4,WXR67-WSSVP63M4,WXR67-WSSVP71M4,WXR67-WSSVP80M4,WXR67-WSSVP90M4,WXR67-WSSVPB100M4,WXR67-WSSVPB112M4,WXR67-WSSVPB132M4,WXR67-WSSVPB63M4,WXR67-WSSVPB71M4,WXR67-WSSVPB80M4,WXR67-WSSVPB90M4。

R67減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.global-iic.com/product/list-rxiliejiansuji-cn.html

推薦類似型號：R57減速機
