R37減速機重量：R37減速機重量8.5Kg，R37減速機配電機重量分別如下

R37減速機配0.12KW電機重量14Kg,R37減速機配0.18KW電機重量14.5Kg,R37減速機配0.25KW電機重量18.5Kg,R37減速機配0.37KW電機重量19Kg,R37減速機配0.55KW電機重量23.5Kg,R37減速機配0.75KW電機重量24.5Kg,R37減速機配1.1KW電機重量28.5Kg,R37減速機配1.5KW電機重量31.5Kg,R37減速機配2.2KW電機重量40.5Kg,R37減速機配3KW電機重量43.5Kg。

R37減速機加油量：可加礦物油

規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R37減速機M1安裝加0.3/0.95升，R37減速機M2安裝加0.85升，R37減速機M3安裝加0.95升，R37減速機M4安裝加1.05升，R37減速機M5安裝加0.75升，R37減速機M6安裝加0.95升。

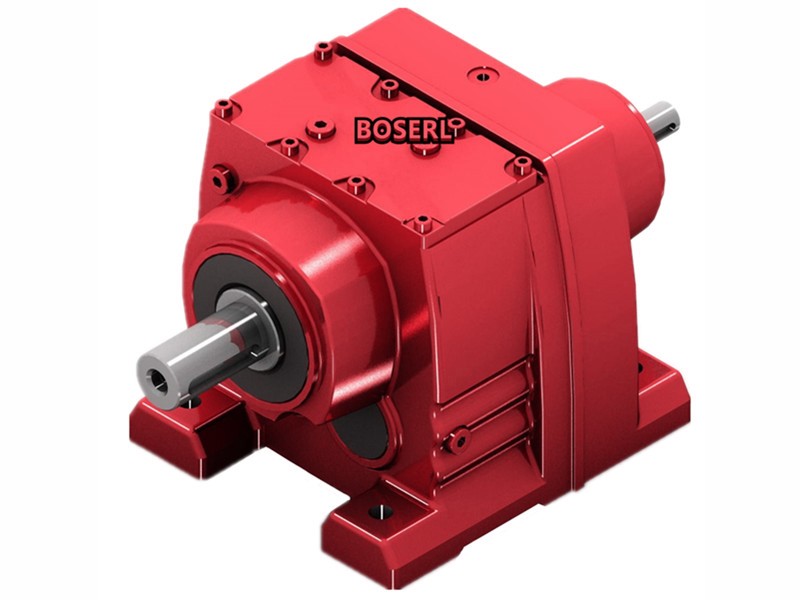

R37減速機實物圖：圖一為R37底腳安裝斜齒輪減速機，圖二RF37法蘭立式安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。

R37減速機型號表示方法：

R37減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入配置。

R37減速機型號結構R37-B3KW-4P-減速比-安裝方式-接線盒位置。

R37減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。

R37減速機結構圖：齒輪減速機

R37減速機參數：

R37減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R37配0.18KW,R37配0.25KW,R37配0.37KW,R37配0.55KW,R37配0.75KW,R37配1.1KW,R37配1.5KW,R37配2.2KW,R37配3KW。

R37減速機減速比3.41比,4.05比,4.32比,5.06比,5.67比,6.67比,7.97比,9.47比,10.11比,11.83比,13.25比,15.6比,18.05比,19.31比,22.27比,24.42比,26.03比,28.32比,28.73比,32.4比,36.72比,39.17比,44.81比,48.08比,55.76比,61.18比,69.33比,73.96比,84.61比,90.77比,105.28比,123.66比,134.82比。

R37減速機輸出轉速10轉,11轉,13轉,15轉,17轉,19轉,20轉,23轉,25轉,29轉,31轉,36轉,38轉,43轉,49轉,54轉,57轉,63轉,73轉,78轉,90轉,106轉,118轉,138轉,148轉,176轉,210轉,247轉,277轉,324轉,346轉,411轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

R37減速機負載扭矩112N.m,122N.m,126N.m,135N.m,142N.m,144N.m,156N.m,167N.m,170N.m,183N.m,185N.m,190N.m,200N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

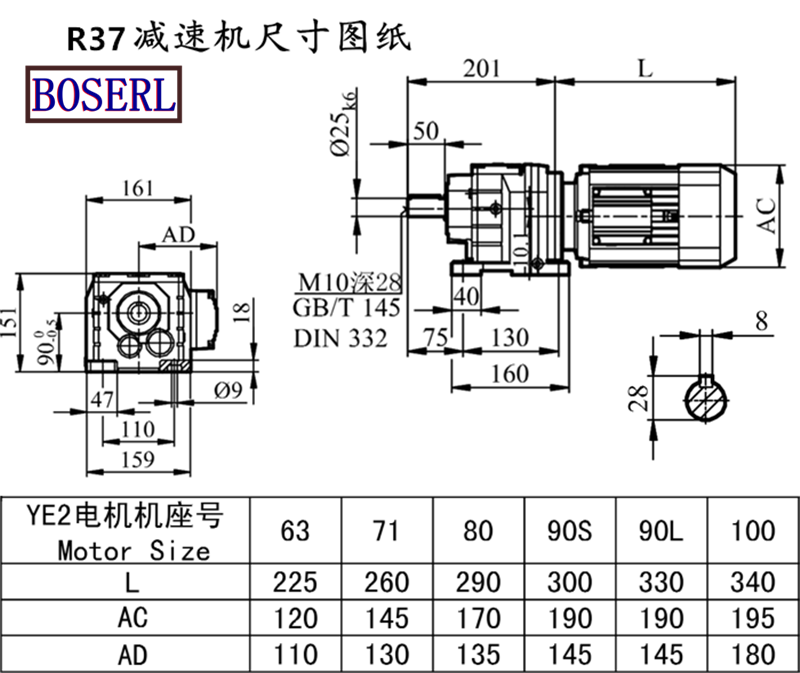

R37減速機尺寸圖紙：高151*寬159*長201（帶輸出軸）R系列減速機

R37減速機型號:

R37AQA80,R37AQA100,R37AQA115,R37AQA140,R37AQA160,R37AQA190,R37AQH80,R37AQH100,R37AQH115,R37AQH140,R37AQH160,R37AQH190,JRTR37-Y0.12KW,JRTR37-Y0.18KW,JRTR37-Y0.25KW,JRTR37-Y0.37KW,JRTR37-Y0.55KW,JRTR37-Y0.75KW,JRTR37-Y1.1KW,JRTR37-Y1.5KW,JRTR37-Y100M4,JRTR37-Y2.2KW,JRTR37-Y3KW,JRTR37-Y63M4,JRTR37-Y71M4,JRTR37-Y80M4,JRTR37-Y90M4,JRTR37-YEJ100M4,JRTR37-YEJ63M4,JRTR37-YEJ71M4,JRTR37-YEJ80M4,JRTR37-YEJ90M4,JRTR37-YS100M4,JRTR37-YS63M4,JRTR37-YS71M4,JRTR37-YS80M4,JRTR37-YS90M4,JRTR37-YVP100M4,JRTR37-YVP63M4,JRTR37-YVP71M4,JRTR37-YVP80M4,JRTR37-YVP90M4,JRTR37-YVPEJ100M4,JRTR37-YVPEJ63M4,JRTR37-YVPEJ71M4,JRTR37-YVPEJ80M4,JRTR37-YVPEJ90M4,EWR37-Y0.12KW,EWR37-Y0.18KW,EWR37-Y0.25KW,EWR37-Y0.37KW,EWR37-Y0.55KW,EWR37-Y0.75KW,EWR37-Y1.1KW,EWR37-Y1.5KW,EWR37-Y100M4,EWR37-Y2.2KW,EWR37-Y3KW,EWR37-Y63M4,EWR37-Y71M4,EWR37-Y80M4,EWR37-Y90M4,EWR37-YEJ100M4,EWR37-YEJ63M4,EWR37-YEJ71M4,EWR37-YEJ80M4,EWR37-YEJ90M4,EWR37-YS100M4,EWR37-YS63M4,EWR37-YS71M4,EWR37-YS80M4,EWR37-YS90M4,EWR37-YVP100M4,EWR37-YVP63M4,EWR37-YVP71M4,EWR37-YVP80M4,EWR37-YVP90M4,EWR37-YVPEJ100M4,EWR37-YVPEJ63M4,EWR37-YVPEJ71M4,EWR37-YVPEJ80M4,EWR37-YVPEJ90M4,SLR37-Y0.12KW,SLR37-Y0.18KW,SLR37-Y0.25KW,SLR37-Y0.37KW,SLR37-Y0.55KW,SLR37-Y0.75KW,SLR37-Y1.1KW,SLR37-Y1.5KW,SLR37-Y100M4,SLR37-Y2.2KW,SLR37-Y3KW,SLR37-Y63M4,SLR37-Y71M4,SLR37-Y80M4,SLR37-Y90M4,SLR37-YEJ100M4,SLR37-YEJ63M4,SLR37-YEJ71M4,SLR37-YEJ80M4,SLR37-YEJ90M4,SLR37-YS100M4,SLR37-YS63M4,SLR37-YS71M4,SLR37-YS80M4,SLR37-YS90M4,SLR37-YVP100M4,SLR37-YVP63M4,SLR37-YVP71M4,SLR37-YVP80M4,SLR37-YVP90M4,SLR37-YVPEJ100M4,SLR37-YVPEJ63M4,SLR37-YVPEJ71M4,SLR37-YVPEJ80M4,SLR37-YVPEJ90M4,DSZR37-Y0.12KW,DSZR37-Y0.18KW,DSZR37-Y0.25KW,DSZR37-Y0.37KW,DSZR37-Y0.55KW,DSZR37-Y0.75KW,DSZR37-Y1.1KW,DSZR37-Y1.5KW,DSZR37-Y100M4,DSZR37-Y2.2KW,DSZR37-Y3KW,DSZR37-Y63M4,DSZR37-Y71M4,DSZR37-Y80M4,DSZR37-Y90M4,DSZR37-YEJ100M4,DSZR37-YEJ63M4,DSZR37-YEJ71M4,DSZR37-YEJ80M4,DSZR37-YEJ90M4,DSZR37-YS100M4,DSZR37-YS63M4,DSZR37-YS71M4,DSZR37-YS80M4,DSZR37-YS90M4,DSZR37-YVP100M4,DSZR37-YVP63M4,DSZR37-YVP71M4,DSZR37-YVP80M4,DSZR37-YVP90M4,DSZR37-YVPEJ100M4,DSZR37-YVPEJ63M4,DSZR37-YVPEJ71M4,DSZR37-YVPEJ80M4,DSZR37-YVPEJ90M4,BR37-Y0.12KW,BR37-Y0.18KW,BR37-Y0.25KW,BR37-Y0.37KW,BR37-Y0.55KW,BR37-Y0.75KW,BR37-Y1.1KW,BR37-Y1.5KW,BR37-Y100M4,BR37-Y2.2KW,BR37-Y3KW,BR37-Y63M4,BR37-Y71M4,BR37-Y80M4,BR37-Y90M4,BR37-YEJ100M4,BR37-YEJ63M4,BR37-YEJ71M4,BR37-YEJ80M4,BR37-YEJ90M4,BR37-YS100M4,BR37-YS63M4,BR37-YS71M4,BR37-YS80M4,BR37-YS90M4,BR37-YVP100M4,BR37-YVP63M4,BR37-YVP71M4,BR37-YVP80M4,BR37-YVP90M4,BR37-YVPEJ100M4,BR37-YVPEJ63M4,BR37-YVPEJ71M4,BR37-YVPEJ80M4,BR37-YVPEJ90M4,GR37-Y0.12KW,GR37-Y0.18KW,GR37-Y0.25KW,GR37-Y0.37KW,GR37-Y0.55KW,GR37-Y0.75KW,GR37-Y1.1KW,GR37-Y1.5KW,GR37-Y100M4,GR37-Y2.2KW,GR37-Y3KW,GR37-Y63M4,GR37-Y71M4,GR37-Y80M4,GR37-Y90M4,GR37-YEJ100M4,GR37-YEJ63M4,GR37-YEJ71M4,GR37-YEJ80M4,GR37-YEJ90M4,GR37-YS100M4,GR37-YS63M4,GR37-YS71M4,GR37-YS80M4,GR37-YS90M4,GR37-YVP100M4,GR37-YVP63M4,GR37-YVP71M4,GR37-YVP80M4,GR37-YVP90M4,GR37-YVPEJ100M4,GR37-YVPEJ63M4,GR37-YVPEJ71M4,GR37-YVPEJ80M4,GR37-YVPEJ90M4,RC37-Y0.12KW,RC37-Y0.18KW,RC37-Y0.25KW,RC37-Y0.37KW,RC37-Y0.55KW,RC37-Y0.75KW,RC37-Y1.1KW,RC37-Y1.5KW,RC37-Y100M4,RC37-Y2.2KW,RC37-Y3KW,RC37-Y63M4,RC37-Y71M4,RC37-Y80M4,RC37-Y90M4,RC37-YEJ100M4,RC37-YEJ63M4,RC37-YEJ71M4,RC37-YEJ80M4,RC37-YEJ90M4,RC37-YS100M4,RC37-YS63M4,RC37-YS71M4,RC37-YS80M4,RC37-YS90M4,RC37-YVP100M4,RC37-YVP63M4,RC37-YVP71M4,RC37-YVP80M4,RC37-YVP90M4,RC37-YVPEJ100M4,RC37-YVPEJ63M4,RC37-YVPEJ71M4,RC37-YVPEJ80M4,RC37-YVPEJ90M4,MTD37-Y0.12KW,MTD37-Y0.18KW,MTD37-Y0.25KW,MTD37-Y0.37KW,MTD37-Y0.55KW,MTD37-Y0.75KW,MTD37-Y1.1KW,MTD37-Y1.5KW,MTD37-Y100M4,MTD37-Y2.2KW,MTD37-Y3KW,MTD37-Y63M4,MTD37-Y71M4,MTD37-Y80M4,MTD37-Y90M4,MTD37-YEJ100M4,MTD37-YEJ63M4,MTD37-YEJ71M4,MTD37-YEJ80M4,MTD37-YEJ90M4,MTD37-YS100M4,MTD37-YS63M4,MTD37-YS71M4,MTD37-YS80M4,MTD37-YS90M4,MTD37-YVP100M4,MTD37-YVP63M4,MTD37-YVP71M4,MTD37-YVP80M4,MTD37-YVP90M4,MTD37-YVPEJ100M4,MTD37-YVPEJ63M4,MTD37-YVPEJ71M4,MTD37-YVPEJ80M4,MTD37-YVPEJ90M4,WXR37-WSS0.12KW,WXR37-WSS0.18KW,WXR37-WSS0.25KW,WXR37-WSS0.37KW,WXR37-WSS0.55KW,WXR37-WSS0.75KW,WXR37-WSS1.1KW,WXR37-WSS1.5KW,WXR37-WSS100M4,WXR37-WSS2.2KW,WXR37-WSS3KW,WXR37-WSS63M4,WXR37-WSS71M4,WXR37-WSS80M4,WXR37-WSS90M4,WXR37-WSSB100M4,WXR37-WSSB63M4,WXR37-WSSB71M4,WXR37-WSSB80M4,WXR37-WSSB90M4,WXR37-WSSVP100M4,WXR37-WSSVP63M4,WXR37-WSSVP71M4,WXR37-WSSVP80M4,WXR37-WSSVP90M4,WXR37-WSSVPB100M4,WXR37-WSSVPB63M4,WXR37-WSSVPB71M4,WXR37-WSSVPB80M4,WXR37-WSSVPB90M4。同軸減速機

R37減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.global-iic.com/product/list-rxiliejiansuji-cn.html

推薦類似型號：R27減速機
