RF47減速機重量：RF47減速機重量12公斤，RF47減速機帶電機重量分別如下

RF47減速機帶0.12KW電機重量17.5公斤,RF47減速機帶0.18KW電機重量18公斤,RF47減速機帶0.25KW電機重量22公斤,RF47減速機帶0.37KW電機重量22.5公斤,RF47減速機帶0.55KW電機重量27公斤,RF47減速機帶0.75KW電機重量28公斤,RF47減速機帶1.1KW電機重量32公斤,RF47減速機帶1.5KW電機重量35公斤,RF47減速機帶2.2KW電機重量44公斤,RF47減速機帶3KW電機重量47公斤,RF47減速機帶4KW電機重量58公斤,RF47減速機帶5.5KW電機重量72公斤。齒輪減速機

RF47減速機加油量：可加合成油

RF47減速機M2安裝加1.6升，RF47減速機M1安裝加0.7、1.5升，RF47減速機M3安裝加1.5升，RF47減速機M4安裝加1.65升，RF47減速機M5安裝加1.5升，RF47減速機M6安裝加1.5升。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。

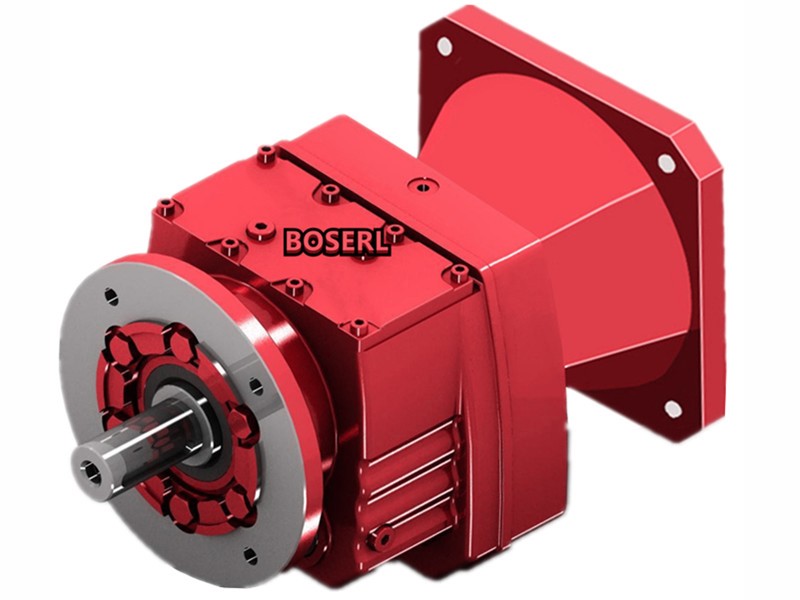

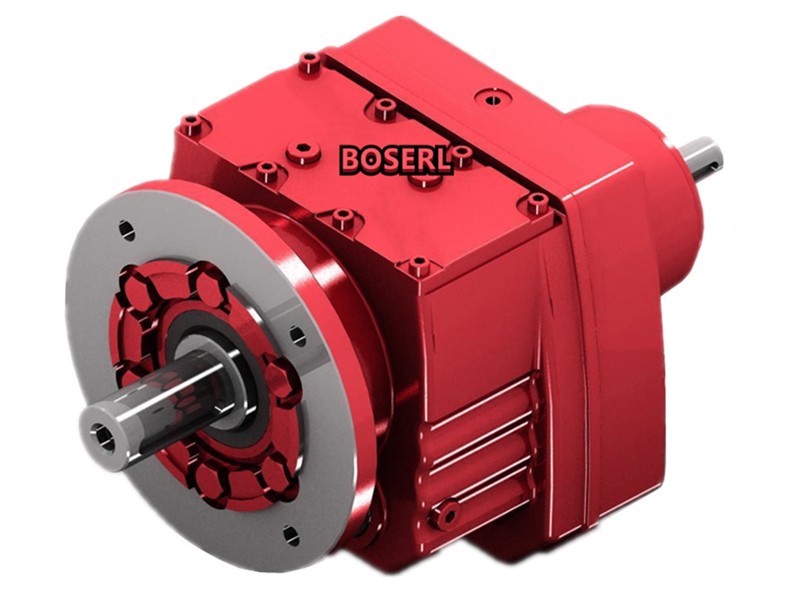

RF47減速機實物圖：圖一為RF47法蘭立式安裝斜齒輪減速機，圖二為R47底腳安裝斜齒輪減速機，圖三為RX系列減速機不同心臥式底腳安裝，圖四為RXF系列減速機不同心立式法蘭安裝。RF系列減速機

RF47減速機型號表示方法：

RF47減速機型號結構RF47-B3KW-4P-減速比-安裝方式-接線盒位置。

RF47減速機性能參數表結構說明：1/min代表輸出轉數，KW代表電機功率，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入帶置。

RF47減速機電機接線盒方位說明：本頁附件選型樣本視圖為M1安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供?？商峁㏒和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。同軸減速機

RF47減速機參數：

RF47減速機電機可帶剎車、變頻、防爆、伺服、交流、直流、三相、單相電機RF47帶0.18KW,RF47帶0.25KW,RF47帶0.37KW,RF47帶0.55KW,RF47帶0.75KW,RF47帶1.1KW,RF47帶1.5KW,RF47帶2.2KW,RF47帶3KW,RF47帶4KW,RF47帶5.5KW。

RF47減速機輸出轉速7.9轉,8.6轉,10轉,11轉,12轉,14轉,15轉,16轉,18轉,20轉,22轉,25轉,27轉,29轉,33轉,38轉,40轉,41轉,45轉,47轉,52轉,52轉,59轉,60轉,64轉,73轉,78轉,86轉,96轉,112轉,119轉,138轉,154轉,175轉,180轉,201轉,233轉,248轉,289轉,323轉,366轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）

RF47減速機負載扭矩144N.m,146N.m,155N.m,156N.m,159N.m,163N.m,205N.m,220N.m,230N.m,240N.m,245N.m,250N.m,265N.m,275N.m,290N.m,295N.m,300N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）

RF47減速機減速比3.83比,4.34比,4.85比,5.64比,6比,6.96比,7.76比,8.01比,9.07比,10.15比,11.79比,12.54比,14.56比,16.22比,17.89比,19.27比,21.81比,23.28比,23.59比,26.7比,26.74比,29.88比,31.12比,33.79比,34.73比,36.93比,42.87比,47.75比,52.69比,56.73比,64.21比,68.54比,76.23比,84.9比,93.68比,100.86比,114.17比,121.87比,139.99比,162.94比,176.88比。

RF47減速機外形尺寸：輸出軸Φ30+鍵3（可定做），高187*寬178*長235（帶輸出軸）

RF47減速機型號：RF47AQA80,RF47AQA100,RF47AQA115,RF47AQA140,RF47AQA160,RF47AQA190,RF47AQH80,RF47AQH100,RF47AQH115,RF47AQH140,RF47AQH160,RF47AQH190,JRTRF47-Y0.12KW,JRTRF47-Y0.18KW,JRTRF47-Y0.25KW,JRTRF47-Y0.37KW,JRTRF47-Y0.55KW,JRTRF47-Y0.75KW,JRTRF47-Y1.1KW,JRTRF47-Y1.5KW,JRTRF47-Y100M4,JRTRF47-Y112M4,JRTRF47-Y132M4,JRTRF47-Y2.2KW,JRTRF47-Y3KW,JRTRF47-Y4KW,JRTRF47-Y5.5KW,JRTRF47-Y63M4,JRTRF47-Y7.5KW,JRTRF47-Y71M4,JRTRF47-Y80M4,JRTRF47-Y90M4,JRTRF47-YEJ100M4,JRTRF47-YEJ112M4,JRTRF47-YEJ132M4,JRTRF47-YEJ63M4,JRTRF47-YEJ71M4,JRTRF47-YEJ80M4,JRTRF47-YEJ90M4,JRTRF47-YS100M4,JRTRF47-YS112M4,JRTRF47-YS132M4,JRTRF47-YS63M4,JRTRF47-YS71M4,JRTRF47-YS80M4,JRTRF47-YS90M4,JRTRF47-YVP100M4,JRTRF47-YVP112M4,JRTRF47-YVP132M4,JRTRF47-YVP63M4,JRTRF47-YVP71M4,JRTRF47-YVP80M4,JRTRF47-YVP90M4,JRTRF47-YVPEJ100M4,JRTRF47-YVPEJ112M4,JRTRF47-YVPEJ132M4,JRTRF47-YVPEJ63M4,JRTRF47-YVPEJ71M4,JRTRF47-YVPEJ80M4,JRTRF47-YVPEJ90M4,EWRF47-Y0.12KW,EWRF47-Y0.18KW,EWRF47-Y0.25KW,EWRF47-Y0.37KW,EWRF47-Y0.55KW,EWRF47-Y0.75KW,EWRF47-Y1.1KW,EWRF47-Y1.5KW,EWRF47-Y100M4,EWRF47-Y112M4,EWRF47-Y132M4,EWRF47-Y2.2KW,EWRF47-Y3KW,EWRF47-Y4KW,EWRF47-Y5.5KW,EWRF47-Y63M4,EWRF47-Y7.5KW,EWRF47-Y71M4,EWRF47-Y80M4,EWRF47-Y90M4,EWRF47-YEJ100M4,EWRF47-YEJ112M4,EWRF47-YEJ132M4,EWRF47-YEJ63M4,EWRF47-YEJ71M4,EWRF47-YEJ80M4,EWRF47-YEJ90M4,EWRF47-YS100M4,EWRF47-YS112M4,EWRF47-YS132M4,EWRF47-YS63M4,EWRF47-YS71M4,EWRF47-YS80M4,EWRF47-YS90M4,EWRF47-YVP100M4,EWRF47-YVP112M4,EWRF47-YVP132M4,EWRF47-YVP63M4,EWRF47-YVP71M4,EWRF47-YVP80M4,EWRF47-YVP90M4,EWRF47-YVPEJ100M4,EWRF47-YVPEJ112M4,EWRF47-YVPEJ132M4,EWRF47-YVPEJ63M4,EWRF47-YVPEJ71M4,EWRF47-YVPEJ80M4,EWRF47-YVPEJ90M4,SLRF47-Y0.12KW,SLRF47-Y0.18KW,SLRF47-Y0.25KW,SLRF47-Y0.37KW,SLRF47-Y0.55KW,SLRF47-Y0.75KW,SLRF47-Y1.1KW,SLRF47-Y1.5KW,SLRF47-Y100M4,SLRF47-Y112M4,SLRF47-Y132M4,SLRF47-Y2.2KW,SLRF47-Y3KW,SLRF47-Y4KW,SLRF47-Y5.5KW,SLRF47-Y63M4,SLRF47-Y7.5KW,SLRF47-Y71M4,SLRF47-Y80M4,SLRF47-Y90M4,SLRF47-YEJ100M4,SLRF47-YEJ112M4,SLRF47-YEJ132M4,SLRF47-YEJ63M4,SLRF47-YEJ71M4,SLRF47-YEJ80M4,SLRF47-YEJ90M4,SLRF47-YS100M4,SLRF47-YS112M4,SLRF47-YS132M4,SLRF47-YS63M4,SLRF47-YS71M4,SLRF47-YS80M4,SLRF47-YS90M4,SLRF47-YVP100M4,SLRF47-YVP112M4,SLRF47-YVP132M4,SLRF47-YVP63M4,SLRF47-YVP71M4,SLRF47-YVP80M4,SLRF47-YVP90M4,SLRF47-YVPEJ100M4,SLRF47-YVPEJ112M4,SLRF47-YVPEJ132M4,SLRF47-YVPEJ63M4,SLRF47-YVPEJ71M4,SLRF47-YVPEJ80M4,SLRF47-YVPEJ90M4,DSZRF47-Y0.12KW,DSZRF47-Y0.18KW,DSZRF47-Y0.25KW,DSZRF47-Y0.37KW,DSZRF47-Y0.55KW,DSZRF47-Y0.75KW,DSZRF47-Y1.1KW,DSZRF47-Y1.5KW,DSZRF47-Y100M4,DSZRF47-Y112M4,DSZRF47-Y132M4,DSZRF47-Y2.2KW,DSZRF47-Y3KW,DSZRF47-Y4KW,DSZRF47-Y5.5KW,DSZRF47-Y63M4,DSZRF47-Y7.5KW,DSZRF47-Y71M4,DSZRF47-Y80M4,DSZRF47-Y90M4,DSZRF47-YEJ100M4,DSZRF47-YEJ112M4,DSZRF47-YEJ132M4,DSZRF47-YEJ63M4,DSZRF47-YEJ71M4,DSZRF47-YEJ80M4,DSZRF47-YEJ90M4,DSZRF47-YS100M4,DSZRF47-YS112M4,DSZRF47-YS132M4,DSZRF47-YS63M4,DSZRF47-YS71M4,DSZRF47-YS80M4,DSZRF47-YS90M4,DSZRF47-YVP100M4,DSZRF47-YVP112M4,DSZRF47-YVP132M4,DSZRF47-YVP63M4,DSZRF47-YVP71M4,DSZRF47-YVP80M4,DSZRF47-YVP90M4,DSZRF47-YVPEJ100M4,DSZRF47-YVPEJ112M4,DSZRF47-YVPEJ132M4,DSZRF47-YVPEJ63M4,DSZRF47-YVPEJ71M4,DSZRF47-YVPEJ80M4,DSZRF47-YVPEJ90M4,BRF47-Y0.12KW,BRF47-Y0.18KW,BRF47-Y0.25KW,BRF47-Y0.37KW,BRF47-Y0.55KW,BRF47-Y0.75KW,BRF47-Y1.1KW,BRF47-Y1.5KW,BRF47-Y100M4,BRF47-Y112M4,BRF47-Y132M4,BRF47-Y2.2KW,BRF47-Y3KW,BRF47-Y4KW,BRF47-Y5.5KW,BRF47-Y63M4,BRF47-Y7.5KW,BRF47-Y71M4,BRF47-Y80M4,BRF47-Y90M4,BRF47-YEJ100M4,BRF47-YEJ112M4,BRF47-YEJ132M4,BRF47-YEJ63M4,BRF47-YEJ71M4,BRF47-YEJ80M4,BRF47-YEJ90M4,BRF47-YS100M4,BRF47-YS112M4,BRF47-YS132M4,BRF47-YS63M4,BRF47-YS71M4,BRF47-YS80M4,BRF47-YS90M4,BRF47-YVP100M4,BRF47-YVP112M4,BRF47-YVP132M4,BRF47-YVP63M4,BRF47-YVP71M4,BRF47-YVP80M4,BRF47-YVP90M4,BRF47-YVPEJ100M4,BRF47-YVPEJ112M4,BRF47-YVPEJ132M4,BRF47-YVPEJ63M4,BRF47-YVPEJ71M4,BRF47-YVPEJ80M4,BRF47-YVPEJ90M4,GRF47-Y0.12KW,GRF47-Y0.18KW,GRF47-Y0.25KW,GRF47-Y0.37KW,GRF47-Y0.55KW,GRF47-Y0.75KW,GRF47-Y1.1KW,GRF47-Y1.5KW,GRF47-Y100M4,GRF47-Y112M4,GRF47-Y132M4,GRF47-Y2.2KW,GRF47-Y3KW,GRF47-Y4KW,GRF47-Y5.5KW,GRF47-Y63M4,GRF47-Y7.5KW,GRF47-Y71M4,GRF47-Y80M4,GRF47-Y90M4,GRF47-YEJ100M4,GRF47-YEJ112M4,GRF47-YEJ132M4,GRF47-YEJ63M4,GRF47-YEJ71M4,GRF47-YEJ80M4,GRF47-YEJ90M4,GRF47-YS100M4,GRF47-YS112M4,GRF47-YS132M4,GRF47-YS63M4,GRF47-YS71M4,GRF47-YS80M4,GRF47-YS90M4,GRF47-YVP100M4,GRF47-YVP112M4,GRF47-YVP132M4,GRF47-YVP63M4,GRF47-YVP71M4,GRF47-YVP80M4,GRF47-YVP90M4,GRF47-YVPEJ100M4,GRF47-YVPEJ112M4,GRF47-YVPEJ132M4,GRF47-YVPEJ63M4,GRF47-YVPEJ71M4,GRF47-YVPEJ80M4,GRF47-YVPEJ90M4,RCF47-Y0.12KW,RCF47-Y0.18KW,RCF47-Y0.25KW,RCF47-Y0.37KW,RCF47-Y0.55KW,RCF47-Y0.75KW,RCF47-Y1.1KW,RCF47-Y1.5KW,RCF47-Y100M4,RCF47-Y112M4,RCF47-Y132M4,RCF47-Y2.2KW,RCF47-Y3KW,RCF47-Y4KW,RCF47-Y5.5KW,RCF47-Y63M4,RCF47-Y7.5KW,RCF47-Y71M4,RCF47-Y80M4,RCF47-Y90M4,RCF47-YEJ100M4,RCF47-YEJ112M4,RCF47-YEJ132M4,RCF47-YEJ63M4,RCF47-YEJ71M4,RCF47-YEJ80M4,RCF47-YEJ90M4,RCF47-YS100M4,RCF47-YS112M4,RCF47-YS132M4,RCF47-YS63M4,RCF47-YS71M4,RCF47-YS80M4,RCF47-YS90M4,RCF47-YVP100M4,RCF47-YVP112M4,RCF47-YVP132M4,RCF47-YVP63M4,RCF47-YVP71M4,RCF47-YVP80M4,RCF47-YVP90M4,RCF47-YVPEJ100M4,RCF47-YVPEJ112M4,RCF47-YVPEJ132M4,RCF47-YVPEJ63M4,RCF47-YVPEJ71M4,RCF47-YVPEJ80M4,RCF47-YVPEJ90M4,MTDF47-Y0.12KW,MTDF47-Y0.18KW,MTDF47-Y0.25KW,MTDF47-Y0.37KW,MTDF47-Y0.55KW,MTDF47-Y0.75KW,MTDF47-Y1.1KW,MTDF47-Y1.5KW,MTDF47-Y100M4,MTDF47-Y112M4,MTDF47-Y132M4,MTDF47-Y2.2KW,MTDF47-Y3KW,MTDF47-Y4KW,MTDF47-Y5.5KW,MTDF47-Y63M4,MTDF47-Y7.5KW,MTDF47-Y71M4,MTDF47-Y80M4,MTDF47-Y90M4,MTDF47-YEJ100M4,MTDF47-YEJ112M4,MTDF47-YEJ132M4,MTDF47-YEJ63M4,MTDF47-YEJ71M4,MTDF47-YEJ80M4,MTDF47-YEJ90M4,MTDF47-YS100M4,MTDF47-YS112M4,MTDF47-YS132M4,MTDF47-YS63M4,MTDF47-YS71M4,MTDF47-YS80M4,MTDF47-YS90M4,MTDF47-YVP100M4,MTDF47-YVP112M4,MTDF47-YVP132M4,MTDF47-YVP63M4,MTDF47-YVP71M4,MTDF47-YVP80M4,MTDF47-YVP90M4,MTDF47-YVPEJ100M4,MTDF47-YVPEJ112M4,MTDF47-YVPEJ132M4,MTDF47-YVPEJ63M4,MTDF47-YVPEJ71M4,MTDF47-YVPEJ80M4,MTDF47-YVPEJ90M4,WXRF47-WSS0.12KW,WXRF47-WSS0.18KW,WXRF47-WSS0.25KW,WXRF47-WSS0.37KW,WXRF47-WSS0.55KW,WXRF47-WSS0.75KW,WXRF47-WSS1.1KW,WXRF47-WSS1.5KW,WXRF47-WSS100M4,WXRF47-WSS112M4,WXRF47-WSS132M4,WXRF47-WSS2.2KW,WXRF47-WSS3KW,WXRF47-WSS4KW,WXRF47-WSS5.5KW,WXRF47-WSS63M4,WXRF47-WSS7.5KW,WXRF47-WSS71M4,WXRF47-WSS80M4,WXRF47-WSS90M4,WXRF47-WSSB100M4,WXRF47-WSSB112M4,WXRF47-WSSB132M4,WXRF47-WSSB63M4,WXRF47-WSSB71M4,WXRF47-WSSB80M4,WXRF47-WSSB90M4,WXRF47-WSSVP100M4,WXRF47-WSSVP112M4,WXRF47-WSSVP132M4,WXRF47-WSSVP63M4,WXRF47-WSSVP71M4,WXRF47-WSSVP80M4,WXRF47-WSSVP90M4,WXRF47-WSSVPB100M4,WXRF47-WSSVPB112M4,WXRF47-WSSVPB132M4,WXRF47-WSSVPB63M4,WXRF47-WSSVPB71M4,WXRF47-WSSVPB80M4,WXRF47-WSSVPB90M4。

RF47減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.global-iic.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R47減速機
