KA47減速機重量：KA47減速機重量19公斤，KA47減速機與電機重量分別如下

KA47減速機與0.12KW電機重量24.5公斤，KA47減速機與0.18KW電機重量25公斤，KA47減速機與0.25KW電機重量29公斤，KA47減速機與0.37KW電機重量29.5公斤，KA47減速機與0.55KW電機重量34公斤，KA47減速機與0.75KW電機重量35公斤，KA47減速機與1.1KW電機重量39公斤，KA47減速機與1.5KW電機重量42公斤，KA47減速機與2.2KW電機重量51公斤，KA47減速機與3KW電機重量54公斤。直角減速機

KA47減速機加油量：可加齒輪油

KA47減速機M3方式安裝加1.6L，KA47減速機M2方式安裝加1.3L，KA47減速機M1方式安裝加0.8L，KA47減速機M4方式安裝加2.1L，KA47減速機M5方式安裝加1.6L，KA47減速機M6方式安裝加1.6L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時，您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速機相應的標準參考潤滑油注入量值。

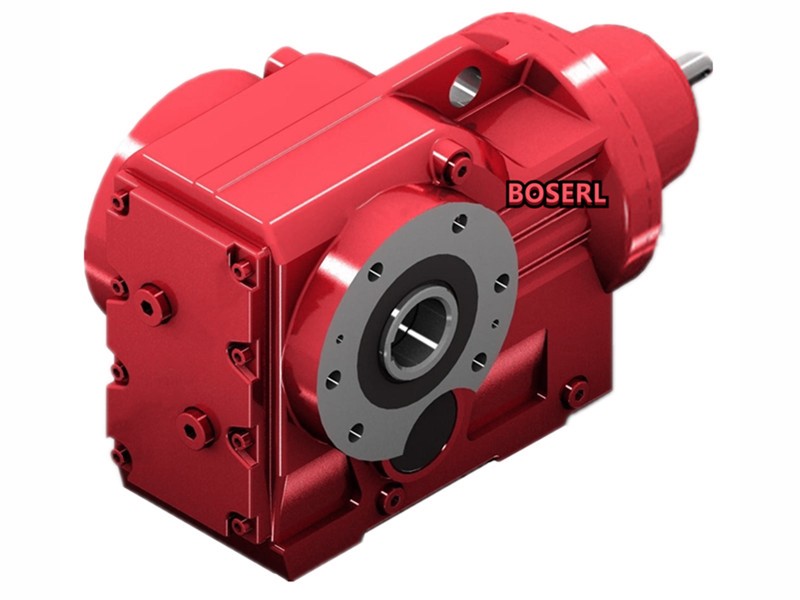

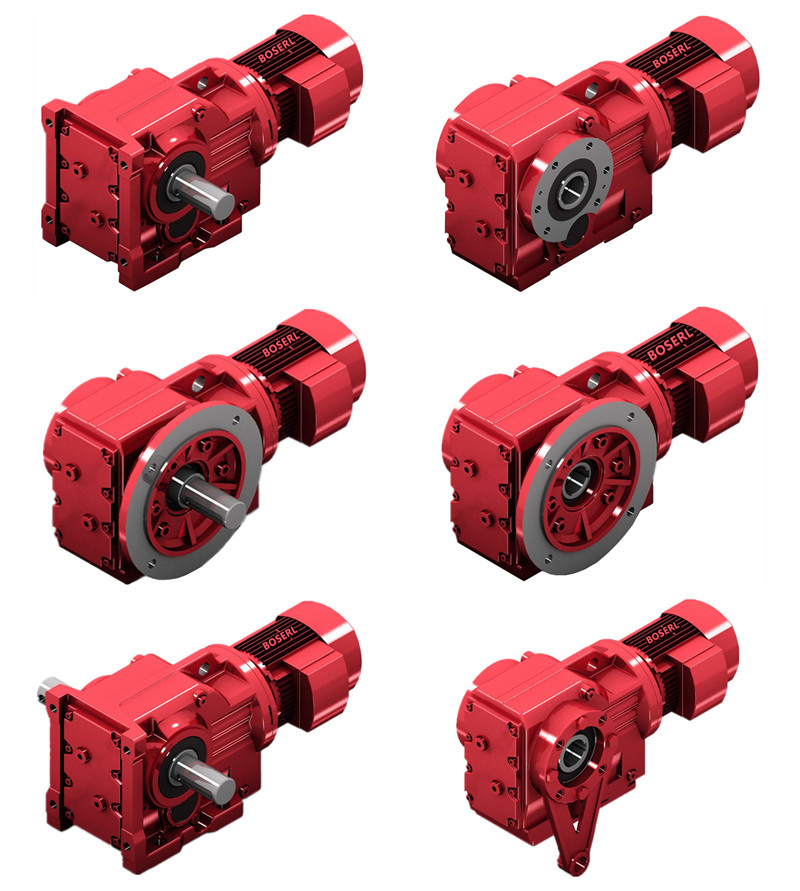

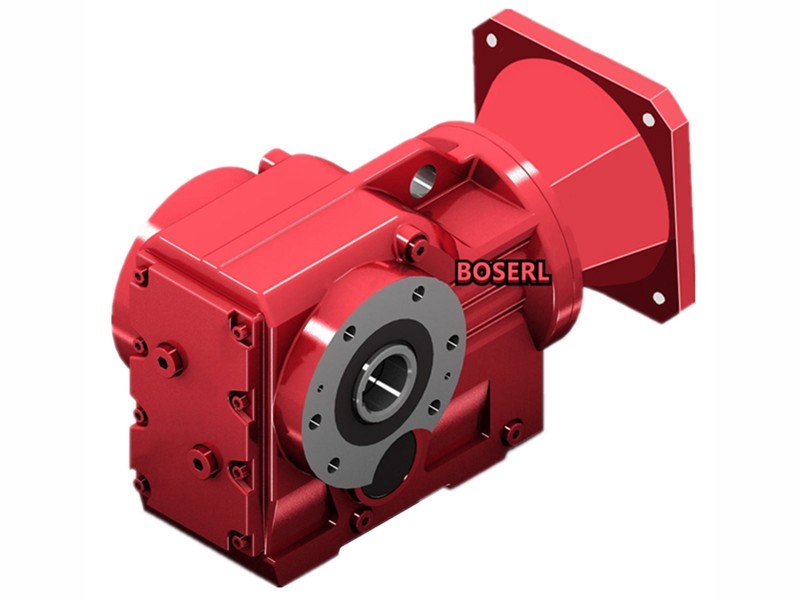

KA47減速機實物圖：圖一為KA47臥式方式安裝空心軸螺旋錐齒輪減速電機，圖二K47臥式方式安裝螺旋錐齒輪減速電機，圖三為KF47立式方式安裝實心軸輸出螺旋錐齒輪減速電機，圖四為KAF47立式方式安裝直角空心軸螺旋錐齒輪減速機。

KA47減速機型號表示方法：

KA47減速機型號結構KA47-B1.1KW-4P-減速比-安裝方式-接線盒位置。

KA47減速機性能參數表結構說明：C防雨罩，V強制冷卻風扇，RS逆止器，Input Configuration代表輸入與置，TF電機熱保護裝置，KA47，K47，KF47，KAF47減速機機座號，N代表徑向負荷，HR手動釋放裝置，1/min代表輸出轉數，HF手動釋放裝置與自鎖功能。

KA47減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1方式安裝，方向為:從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位?？商峁㏒和N兩種進線方位，其中R(0°)位置是默認方位，如無特別說明，將按默認方位提供。

KA47減速機參數：

KA47減速機減速比131.87比，121.48比，104.37比，90.86比，85.12比，75.20比，69.84比，63.30比，56.83比，48.95比，46.03比，39.61比，35.39比，31.30比，29.32比，25.91比，24.06比，21.81比，19.58比，16.86比，15.86比，13.65比，12.19比，11.77比，10.56比，9.10比，8.56比，7.36比，6.58比，5.81比，4.64比

KA47減速機輸出轉數11轉，12轉，13轉，15轉，16轉，19轉，20轉，22轉，25轉，29轉，30轉，35轉，40轉，45轉，48轉，54轉，58轉，64轉，72轉，83轉，88轉，103轉，115轉，119轉，133轉，154轉，164轉，190轉，213轉，241轉，302轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為K系列減速機的輸入）

KA47減速機電機可與單相，直流，變頻，剎車，防爆，伺服，交流，三相電機KA47與0.12KW，KA47與0.18KW，KA47與0.25KW，KA47與0.37KW，KA47與0.55KW，KA47與0.75KW，KA47與1.1KW，KA47與1.5KW，KA47與2.2KW，KA47與3KW。

KA47減速機輸出扭矩5920N.m，5700N.m，5520N.m，5170N.m，4970N.m，4710N.m，4440N.m，4220N.m，4080N.m，3890N.m，3720N.m，4060N.m，3830N.m，3540N.m，3500N.m，3380N.m，3270N.m，3140N.m，2980N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

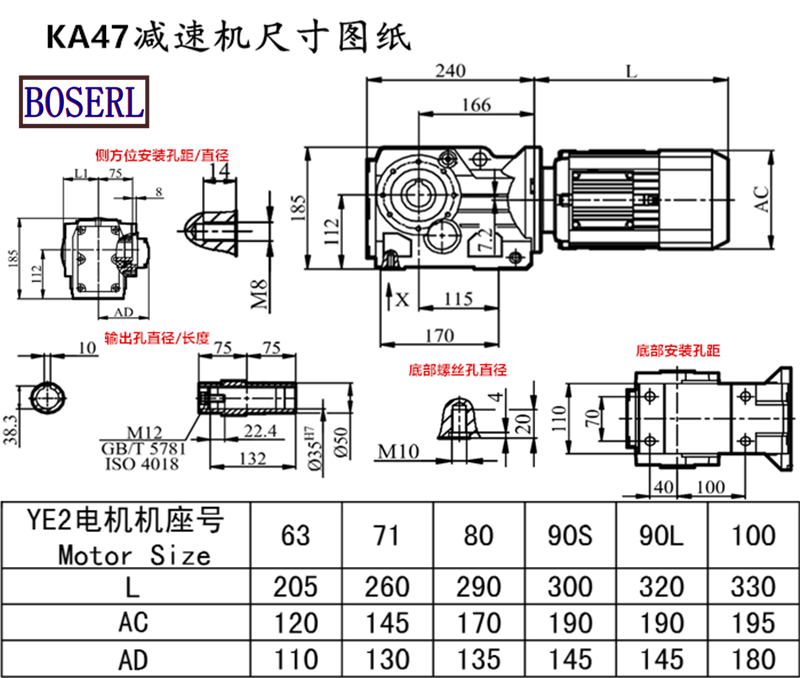

KA47減速機安裝尺寸：高185*寬145*長240

KA47減速機型號：KA47AQA80,KA47AQA100,KA47AQA115,KA47AQA140,KA47AQA160,KA47AQA190,KA47AQH80,KA47AQH100,KA47AQH115,KA47AQH140,KA47AQH160,KA47AQH190,JRTKA47-Y0.12KW,JRTKA47-Y0.18KW,JRTKA47-Y0.25KW,JRTKA47-Y0.37KW,JRTKA47-Y0.55KW,JRTKA47-Y0.75KW,JRTKA47-Y1.1KW,JRTKA47-Y1.5KW,JRTKA47-Y100M4,JRTKA47-Y2.2KW,JRTKA47-Y3KW,JRTKA47-Y63M4,JRTKA47-Y71M4,JRTKA47-Y80M4,JRTKA47-Y90M4,JRTKA47-YEJ100M4,JRTKA47-YEJ63M4,JRTKA47-YEJ71M4,JRTKA47-YEJ80M4,JRTKA47-YEJ90M4,JRTKA47-YS100M4,JRTKA47-YS63M4,JRTKA47-YS71M4,JRTKA47-YS80M4,JRTKA47-YS90M4,JRTKA47-YVP100M4,JRTKA47-YVP63M4,JRTKA47-YVP71M4,JRTKA47-YVP80M4,JRTKA47-YVP90M4,JRTKA47-YVPEJ100M4,JRTKA47-YVPEJ63M4,JRTKA47-YVPEJ71M4,JRTKA47-YVPEJ80M4,JRTKA47-YVPEJ90M4,EWKA47-Y0.12KW,EWKA47-Y0.18KW,EWKA47-Y0.25KW,EWKA47-Y0.37KW,EWKA47-Y0.55KW,EWKA47-Y0.75KW,EWKA47-Y1.1KW,EWKA47-Y1.5KW,EWKA47-Y100M4,EWKA47-Y2.2KW,EWKA47-Y3KW,EWKA47-Y63M4,EWKA47-Y71M4,EWKA47-Y80M4,EWKA47-Y90M4,EWKA47-YEJ100M4,EWKA47-YEJ63M4,EWKA47-YEJ71M4,EWKA47-YEJ80M4,EWKA47-YEJ90M4,EWKA47-YS100M4,EWKA47-YS63M4,EWKA47-YS71M4,EWKA47-YS80M4,EWKA47-YS90M4,EWKA47-YVP100M4,EWKA47-YVP63M4,EWKA47-YVP71M4,EWKA47-YVP80M4,EWKA47-YVP90M4,EWKA47-YVPEJ100M4,EWKA47-YVPEJ63M4,EWKA47-YVPEJ71M4,EWKA47-YVPEJ80M4,EWKA47-YVPEJ90M4,SLKA47-Y0.12KW,SLKA47-Y0.18KW,SLKA47-Y0.25KW,SLKA47-Y0.37KW,SLKA47-Y0.55KW,SLKA47-Y0.75KW,SLKA47-Y1.1KW,SLKA47-Y1.5KW,SLKA47-Y100M4,SLKA47-Y2.2KW,SLKA47-Y3KW,SLKA47-Y63M4,SLKA47-Y71M4,SLKA47-Y80M4,SLKA47-Y90M4,SLKA47-YEJ100M4,SLKA47-YEJ63M4,SLKA47-YEJ71M4,SLKA47-YEJ80M4,SLKA47-YEJ90M4,SLKA47-YS100M4,SLKA47-YS63M4,SLKA47-YS71M4,SLKA47-YS80M4,SLKA47-YS90M4,SLKA47-YVP100M4,SLKA47-YVP63M4,SLKA47-YVP71M4,SLKA47-YVP80M4,SLKA47-YVP90M4,SLKA47-YVPEJ100M4,SLKA47-YVPEJ63M4,SLKA47-YVPEJ71M4,SLKA47-YVPEJ80M4,SLKA47-YVPEJ90M4,DSZKA47-Y0.12KW,DSZKA47-Y0.18KW,DSZKA47-Y0.25KW,DSZKA47-Y0.37KW,DSZKA47-Y0.55KW,DSZKA47-Y0.75KW,DSZKA47-Y1.1KW,DSZKA47-Y1.5KW,DSZKA47-Y100M4,DSZKA47-Y2.2KW,DSZKA47-Y3KW,DSZKA47-Y63M4,DSZKA47-Y71M4,DSZKA47-Y80M4,DSZKA47-Y90M4,DSZKA47-YEJ100M4,DSZKA47-YEJ63M4,DSZKA47-YEJ71M4,DSZKA47-YEJ80M4,DSZKA47-YEJ90M4,DSZKA47-YS100M4,DSZKA47-YS63M4,DSZKA47-YS71M4,DSZKA47-YS80M4,DSZKA47-YS90M4,DSZKA47-YVP100M4,DSZKA47-YVP63M4,DSZKA47-YVP71M4,DSZKA47-YVP80M4,DSZKA47-YVP90M4,DSZKA47-YVPEJ100M4,DSZKA47-YVPEJ63M4,DSZKA47-YVPEJ71M4,DSZKA47-YVPEJ80M4,DSZKA47-YVPEJ90M4,BKA47-Y0.12KW,BKA47-Y0.18KW,BKA47-Y0.25KW,BKA47-Y0.37KW,BKA47-Y0.55KW,BKA47-Y0.75KW,BKA47-Y1.1KW,BKA47-Y1.5KW,BKA47-Y100M4,BKA47-Y2.2KW,BKA47-Y3KW,BKA47-Y63M4,BKA47-Y71M4,BKA47-Y80M4,BKA47-Y90M4,BKA47-YEJ100M4,BKA47-YEJ63M4,BKA47-YEJ71M4,BKA47-YEJ80M4,BKA47-YEJ90M4,BKA47-YS100M4,BKA47-YS63M4,BKA47-YS71M4,BKA47-YS80M4,BKA47-YS90M4,BKA47-YVP100M4,BKA47-YVP63M4,BKA47-YVP71M4,BKA47-YVP80M4,BKA47-YVP90M4,BKA47-YVPEJ100M4,BKA47-YVPEJ63M4,BKA47-YVPEJ71M4,BKA47-YVPEJ80M4,BKA47-YVPEJ90M4,GKA47-Y0.12KW,GKA47-Y0.18KW,GKA47-Y0.25KW,GKA47-Y0.37KW,GKA47-Y0.55KW,GKA47-Y0.75KW,GKA47-Y1.1KW,GKA47-Y1.5KW,GKA47-Y100M4,GKA47-Y2.2KW,GKA47-Y3KW,GKA47-Y63M4,GKA47-Y71M4,GKA47-Y80M4,GKA47-Y90M4,GKA47-YEJ100M4,GKA47-YEJ63M4,GKA47-YEJ71M4,GKA47-YEJ80M4,GKA47-YEJ90M4,GKA47-YS100M4,GKA47-YS63M4,GKA47-YS71M4,GKA47-YS80M4,GKA47-YS90M4,GKA47-YVP100M4,GKA47-YVP63M4,GKA47-YVP71M4,GKA47-YVP80M4,GKA47-YVP90M4,GKA47-YVPEJ100M4,GKA47-YVPEJ63M4,GKA47-YVPEJ71M4,GKA47-YVPEJ80M4,GKA47-YVPEJ90M4,KCA47-Y0.12KW,KCA47-Y0.18KW,KCA47-Y0.25KW,KCA47-Y0.37KW,KCA47-Y0.55KW,KCA47-Y0.75KW,KCA47-Y1.1KW,KCA47-Y1.5KW,KCA47-Y100M4,KCA47-Y2.2KW,KCA47-Y3KW,KCA47-Y63M4,KCA47-Y71M4,KCA47-Y80M4,KCA47-Y90M4,KCA47-YEJ100M4,KCA47-YEJ63M4,KCA47-YEJ71M4,KCA47-YEJ80M4,KCA47-YEJ90M4,KCA47-YS100M4,KCA47-YS63M4,KCA47-YS71M4,KCA47-YS80M4,KCA47-YS90M4,KCA47-YVP100M4,KCA47-YVP63M4,KCA47-YVP71M4,KCA47-YVP80M4,KCA47-YVP90M4,KCA47-YVPEJ100M4,KCA47-YVPEJ63M4,KCA47-YVPEJ71M4,KCA47-YVPEJ80M4,KCA47-YVPEJ90M4,MTJA47-Y0.12KW,MTJA47-Y0.18KW,MTJA47-Y0.25KW,MTJA47-Y0.37KW,MTJA47-Y0.55KW,MTJA47-Y0.75KW,MTJA47-Y1.1KW,MTJA47-Y1.5KW,MTJA47-Y100M4,MTJA47-Y2.2KW,MTJA47-Y3KW,MTJA47-Y63M4,MTJA47-Y71M4,MTJA47-Y80M4,MTJA47-Y90M4,MTJA47-YEJ100M4,MTJA47-YEJ63M4,MTJA47-YEJ71M4,MTJA47-YEJ80M4,MTJA47-YEJ90M4,MTJA47-YS100M4,MTJA47-YS63M4,MTJA47-YS71M4,MTJA47-YS80M4,MTJA47-YS90M4,MTJA47-YVP100M4,MTJA47-YVP63M4,MTJA47-YVP71M4,MTJA47-YVP80M4,MTJA47-YVP90M4,MTJA47-YVPEJ100M4,MTJA47-YVPEJ63M4,MTJA47-YVPEJ71M4,MTJA47-YVPEJ80M4,MTJA47-YVPEJ90M4,WXKA47-WSS0.12KW,WXKA47-WSS0.18KW,WXKA47-WSS0.25KW,WXKA47-WSS0.37KW,WXKA47-WSS0.55KW,WXKA47-WSS0.75KW,WXKA47-WSS1.1KW,WXKA47-WSS1.5KW,WXKA47-WSS100M4,WXKA47-WSS2.2KW,WXKA47-WSS3KW,WXKA47-WSS63M4,WXKA47-WSS71M4,WXKA47-WSS80M4,WXKA47-WSS90M4,WXKA47-WSSB100M4,WXKA47-WSSB63M4,WXKA47-WSSB71M4,WXKA47-WSSB80M4,WXKA47-WSSB90M4,WXKA47-WSSVP100M4,WXKA47-WSSVP63M4,WXKA47-WSSVP71M4,WXKA47-WSSVP80M4,WXKA47-WSSVP90M4,WXKA47-WSSVPB100M4,WXKA47-WSSVPB63M4,WXKA47-WSSVPB71M4,WXKA47-WSSVPB80M4,WXKA47-WSSVPB90M4。空心軸減速機
