FAF27減速機加電機重量：

FF27減速機帶0.12KW電機重量18.5公斤，F(xiàn)F27減速機帶0.18KW電機重量19公斤，F(xiàn)F27減速機帶0.25KW電機重量23公斤，F(xiàn)F27減速機帶0.37KW電機重量23.5公斤，F(xiàn)F27減速機帶0.55KW電機重量28公斤，F(xiàn)F27減速機帶0.75KW電機重量29公斤，F(xiàn)F27減速機帶1.1KW電機重量33公斤，F(xiàn)F27減速機帶1.5KW電機重量36公斤，F(xiàn)F27減速機帶2.2KW電機重量45公斤。

FAF27減速機加油量：可加齒輪油

FAF27減速機M4安裝形式加0.7L，F(xiàn)AF27減速機M3安裝形式加0.65L，F(xiàn)AF27減速機M2安裝形式加0.8L，F(xiàn)AF27減速機M1安裝形式加0.6L，F(xiàn)AF27減速機M5安裝形式加0.6L，F(xiàn)AF27減速機M6安裝形式加0.6L。規定的加注量為參老值。精確值的變化加級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝形式時,您必須根據改變后的安裝形式相應調整加注潤滑劑。上述中列出了安裝形式M1-M6的減速機相應的標準參考潤滑油注入量值。

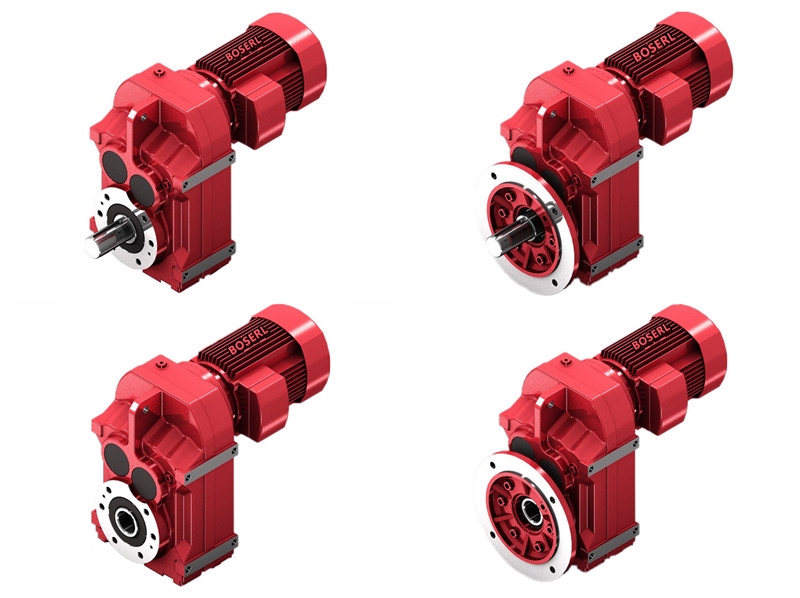

FAF27減速機實物圖：圖一為FAF27立式法蘭孔輸出平行軸斜齒輪減速機，圖二F27底腳安裝形式軸輸出平行軸減速機，圖三為FF27立式法蘭軸輸出平行軸斜齒輪減速機，圖四為FA27臥式孔輸出平行軸斜齒輪減速機。

FAF27減速機型號表示方法：

FAF27減速機型號結構FAF27-B0.55KW-4P-減速比-安裝形式-接線盒位置。

FAF27減速機性能參數表結構說明：TF電機熱保護裝置，HR手動釋放裝置，HF手動釋放裝置加自鎖功能，F(xiàn)AF27，F(xiàn)F27，F(xiàn)27，F(xiàn)A27減速機機座號，N代表徑向負荷，KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩。

FAF27減速機電機接線盒方位說明：本頁附件選型手冊視圖為M1安裝形式，方向?yàn)?從電機尾部的風罩向前看?？商峁㏑(0°)，B(90°），L(180° )，T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。變頻電機減速機

FAF27減速機參數：

FAF27減速機輸出扭矩130N.m，123N.m，114N.m，109N.m，100N.m，96N.m，87N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大，或者選擇跟R系列減速機組合使用）

FAF27減速機減速比1:140，1:129，1:109，1:94，1:88，1:77，1:72，1:63，1:56，1:50，1:46，1:40，1:38，1:33，1:29，1:27，1:23，1:20，1:18，1:16，1:13，1:12，1:10，1:9，1:8，1:6，1:5，1:4

FAF27減速機輸出轉數：9轉，11轉，13轉，15轉，16轉，18轉，19轉，22轉，25轉，28轉，30轉，34轉，37轉，41轉，47轉，52轉，60轉，69轉，74轉，86轉，101轉，113轉，133轉，142轉，149轉，172轉，203轉，227轉，266轉，284轉，337轉。（以上轉數均為四級電機算出的，可用2P，6P，8P計算，也可以用變頻電機調速，當需要特別低速輸出時，可選擇R系列減速機作為F系列減速機的輸入）

FAF27減速機電機可加直流，變頻，剎車，防爆，伺服，交流，三相，單相電機FAF27加0.12KW，F(xiàn)AF27加0.18KW，F(xiàn)AF27加0.25KW，F(xiàn)AF27加0.37KW，F(xiàn)AF27加0.55KW，F(xiàn)AF27加0.75KW，F(xiàn)AF27加1.1KW，F(xiàn)AF27加1.5KW，F(xiàn)AF27加2.2KW。

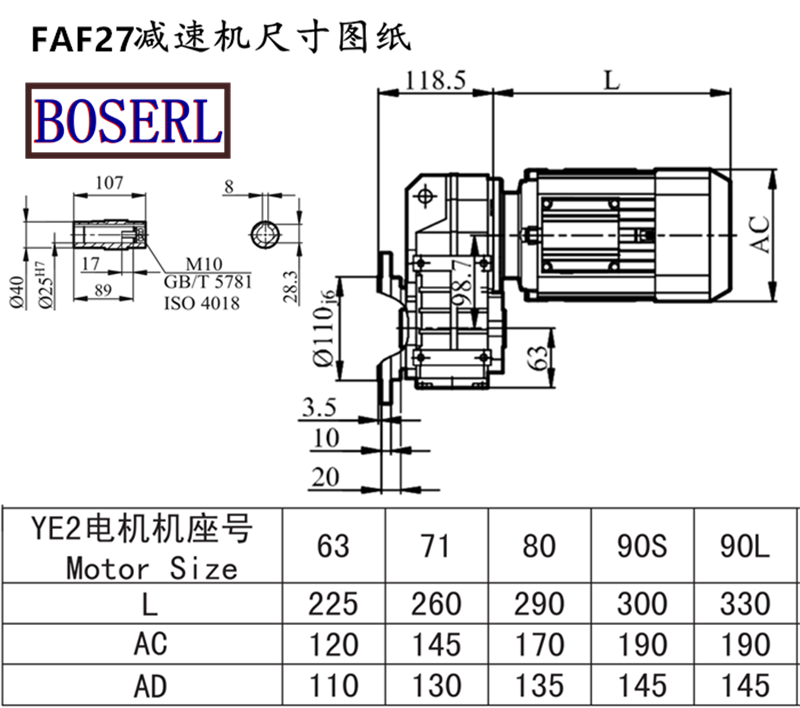

FAF27減速機外觀尺寸：輸出孔直徑Φ25+鍵3.5，高226*寬150*長118.5（帶法蘭）

FAF27減速機型號：FAF27AQA80,FAF27AQA100,FAF27AQA115,FAF27AQA140,FAF27AQA160,FAF27AQA190,FAF27AQH80,FAF27AQH100,FAF27AQH115,FAF27AQH140,FAF27AQH160,FAF27AQH190,JRTFAF27-Y0.12KW,JRTFAF27-Y0.18KW,JRTFAF27-Y0.25KW,JRTFAF27-Y0.37KW,JRTFAF27-Y0.55KW,JRTFAF27-Y0.75KW,JRTFAF27-Y1.1KW,JRTFAF27-Y1.5KW,JRTFAF27-Y100M4,JRTFAF27-Y2.2KW,JRTFAF27-Y63M4,JRTFAF27-Y71M4,JRTFAF27-Y80M4,JRTFAF27-Y90M4,JRTFAF27-YEJ100M4,JRTFAF27-YEJ63M4,JRTFAF27-YEJ71M4,JRTFAF27-YEJ80M4,JRTFAF27-YEJ90M4,JRTFAF27-YS100M4,JRTFAF27-YS63M4,JRTFAF27-YS71M4,JRTFAF27-YS80M4,JRTFAF27-YS90M4,JRTFAF27-YVP100M4,JRTFAF27-YVP63M4,JRTFAF27-YVP71M4,JRTFAF27-YVP80M4,JRTFAF27-YVP90M4,JRTFAF27-YVPEJ100M4,JRTFAF27-YVPEJ63M4,JRTFAF27-YVPEJ71M4,JRTFAF27-YVPEJ80M4,JRTFAF27-YVPEJ90M4,EWFAF27-Y0.12KW,EWFAF27-Y0.18KW,EWFAF27-Y0.25KW,EWFAF27-Y0.37KW,EWFAF27-Y0.55KW,EWFAF27-Y0.75KW,EWFAF27-Y1.1KW,EWFAF27-Y1.5KW,EWFAF27-Y100M4,EWFAF27-Y2.2KW,EWFAF27-Y63M4,EWFAF27-Y71M4,EWFAF27-Y80M4,EWFAF27-Y90M4,EWFAF27-YEJ100M4,EWFAF27-YEJ63M4,EWFAF27-YEJ71M4,EWFAF27-YEJ80M4,EWFAF27-YEJ90M4,EWFAF27-YS100M4,EWFAF27-YS63M4,EWFAF27-YS71M4,EWFAF27-YS80M4,EWFAF27-YS90M4,EWFAF27-YVP100M4,EWFAF27-YVP63M4,EWFAF27-YVP71M4,EWFAF27-YVP80M4,EWFAF27-YVP90M4,EWFAF27-YVPEJ100M4,EWFAF27-YVPEJ63M4,EWFAF27-YVPEJ71M4,EWFAF27-YVPEJ80M4,EWFAF27-YVPEJ90M4,SLFAF27-Y0.12KW,SLFAF27-Y0.18KW,SLFAF27-Y0.25KW,SLFAF27-Y0.37KW,SLFAF27-Y0.55KW,SLFAF27-Y0.75KW,SLFAF27-Y1.1KW,SLFAF27-Y1.5KW,SLFAF27-Y100M4,SLFAF27-Y2.2KW,SLFAF27-Y63M4,SLFAF27-Y71M4,SLFAF27-Y80M4,SLFAF27-Y90M4,SLFAF27-YEJ100M4,SLFAF27-YEJ63M4,SLFAF27-YEJ71M4,SLFAF27-YEJ80M4,SLFAF27-YEJ90M4,SLFAF27-YS100M4,SLFAF27-YS63M4,SLFAF27-YS71M4,SLFAF27-YS80M4,SLFAF27-YS90M4,SLFAF27-YVP100M4,SLFAF27-YVP63M4,SLFAF27-YVP71M4,SLFAF27-YVP80M4,SLFAF27-YVP90M4,SLFAF27-YVPEJ100M4,SLFAF27-YVPEJ63M4,SLFAF27-YVPEJ71M4,SLFAF27-YVPEJ80M4,SLFAF27-YVPEJ90M4,DSZFAF27-Y0.12KW,DSZFAF27-Y0.18KW,DSZFAF27-Y0.25KW,DSZFAF27-Y0.37KW,DSZFAF27-Y0.55KW,DSZFAF27-Y0.75KW,DSZFAF27-Y1.1KW,DSZFAF27-Y1.5KW,DSZFAF27-Y100M4,DSZFAF27-Y2.2KW,DSZFAF27-Y63M4,DSZFAF27-Y71M4,DSZFAF27-Y80M4,DSZFAF27-Y90M4,DSZFAF27-YEJ100M4,DSZFAF27-YEJ63M4,DSZFAF27-YEJ71M4,DSZFAF27-YEJ80M4,DSZFAF27-YEJ90M4,DSZFAF27-YS100M4,DSZFAF27-YS63M4,DSZFAF27-YS71M4,DSZFAF27-YS80M4,DSZFAF27-YS90M4,DSZFAF27-YVP100M4,DSZFAF27-YVP63M4,DSZFAF27-YVP71M4,DSZFAF27-YVP80M4,DSZFAF27-YVP90M4,DSZFAF27-YVPEJ100M4,DSZFAF27-YVPEJ63M4,DSZFAF27-YVPEJ71M4,DSZFAF27-YVPEJ80M4,DSZFAF27-YVPEJ90M4,BFAF27-Y0.12KW,BFAF27-Y0.18KW,BFAF27-Y0.25KW,BFAF27-Y0.37KW,BFAF27-Y0.55KW,BFAF27-Y0.75KW,BFAF27-Y1.1KW,BFAF27-Y1.5KW,BFAF27-Y100M4,BFAF27-Y2.2KW,BFAF27-Y63M4,BFAF27-Y71M4,BFAF27-Y80M4,BFAF27-Y90M4,BFAF27-YEJ100M4,BFAF27-YEJ63M4,BFAF27-YEJ71M4,BFAF27-YEJ80M4,BFAF27-YEJ90M4,BFAF27-YS100M4,BFAF27-YS63M4,BFAF27-YS71M4,BFAF27-YS80M4,BFAF27-YS90M4,BFAF27-YVP100M4,BFAF27-YVP63M4,BFAF27-YVP71M4,BFAF27-YVP80M4,BFAF27-YVP90M4,BFAF27-YVPEJ100M4,BFAF27-YVPEJ63M4,BFAF27-YVPEJ71M4,BFAF27-YVPEJ80M4,BFAF27-YVPEJ90M4,GFAF27-Y0.12KW,GFAF27-Y0.18KW,GFAF27-Y0.25KW,GFAF27-Y0.37KW,GFAF27-Y0.55KW,GFAF27-Y0.75KW,GFAF27-Y1.1KW,GFAF27-Y1.5KW,GFAF27-Y100M4,GFAF27-Y2.2KW,GFAF27-Y63M4,GFAF27-Y71M4,GFAF27-Y80M4,GFAF27-Y90M4,GFAF27-YEJ100M4,GFAF27-YEJ63M4,GFAF27-YEJ71M4,GFAF27-YEJ80M4,GFAF27-YEJ90M4,GFAF27-YS100M4,GFAF27-YS63M4,GFAF27-YS71M4,GFAF27-YS80M4,GFAF27-YS90M4,GFAF27-YVP100M4,GFAF27-YVP63M4,GFAF27-YVP71M4,GFAF27-YVP80M4,GFAF27-YVP90M4,GFAF27-YVPEJ100M4,GFAF27-YVPEJ63M4,GFAF27-YVPEJ71M4,GFAF27-YVPEJ80M4,GFAF27-YVPEJ90M4,FCAF27-Y0.12KW,FCAF27-Y0.18KW,FCAF27-Y0.25KW,FCAF27-Y0.37KW,FCAF27-Y0.55KW,FCAF27-Y0.75KW,FCAF27-Y1.1KW,FCAF27-Y1.5KW,FCAF27-Y100M4,FCAF27-Y2.2KW,FCAF27-Y63M4,FCAF27-Y71M4,FCAF27-Y80M4,FCAF27-Y90M4,FCAF27-YEJ100M4,FCAF27-YEJ63M4,FCAF27-YEJ71M4,FCAF27-YEJ80M4,FCAF27-YEJ90M4,FCAF27-YS100M4,FCAF27-YS63M4,FCAF27-YS71M4,FCAF27-YS80M4,FCAF27-YS90M4,FCAF27-YVP100M4,FCAF27-YVP63M4,FCAF27-YVP71M4,FCAF27-YVP80M4,FCAF27-YVP90M4,FCAF27-YVPEJ100M4,FCAF27-YVPEJ63M4,FCAF27-YVPEJ71M4,FCAF27-YVPEJ80M4,FCAF27-YVPEJ90M4,MTPAF27-Y0.12KW,MTPAF27-Y0.18KW,MTPAF27-Y0.25KW,MTPAF27-Y0.37KW,MTPAF27-Y0.55KW,MTPAF27-Y0.75KW,MTPAF27-Y1.1KW,MTPAF27-Y1.5KW,MTPAF27-Y100M4,MTPAF27-Y2.2KW,MTPAF27-Y63M4,MTPAF27-Y71M4,MTPAF27-Y80M4,MTPAF27-Y90M4,MTPAF27-YEJ100M4,MTPAF27-YEJ63M4,MTPAF27-YEJ71M4,MTPAF27-YEJ80M4,MTPAF27-YEJ90M4,MTPAF27-YS100M4,MTPAF27-YS63M4,MTPAF27-YS71M4,MTPAF27-YS80M4,MTPAF27-YS90M4,MTPAF27-YVP100M4,MTPAF27-YVP63M4,MTPAF27-YVP71M4,MTPAF27-YVP80M4,MTPAF27-YVP90M4,MTPAF27-YVPEJ100M4,MTPAF27-YVPEJ63M4,MTPAF27-YVPEJ71M4,MTPAF27-YVPEJ80M4,MTPAF27-YVPEJ90M4,WXFAF27-WSS0.12KW,WXFAF27-WSS0.18KW,WXFAF27-WSS0.25KW,WXFAF27-WSS0.37KW,WXFAF27-WSS0.55KW,WXFAF27-WSS0.75KW,WXFAF27-WSS1.1KW,WXFAF27-WSS1.5KW,WXFAF27-WSS100M4,WXFAF27-WSS2.2KW,WXFAF27-WSS63M4,WXFAF27-WSS71M4,WXFAF27-WSS80M4,WXFAF27-WSS90M4,WXFAF27-WSSB100M4,WXFAF27-WSSB63M4,WXFAF27-WSSB71M4,WXFAF27-WSSB80M4,WXFAF27-WSSB90M4,WXFAF27-WSSVP100M4,WXFAF27-WSSVP63M4,WXFAF27-WSSVP71M4,WXFAF27-WSSVP80M4,WXFAF27-WSSVP90M4,WXFAF27-WSSVPB100M4,WXFAF27-WSSVPB63M4,WXFAF27-WSSVPB71M4,WXFAF27-WSSVPB80M4,WXFAF27-WSSVPB90M4,WXFAF27-WSS0.12KW,WXFAF27-WSS0.18KW,WXFAF27-WSS0.25KW,WXFAF27-WSS0.37KW,WXFAF27-WSS0.55KW,WXFAF27-WSS0.75KW,WXFAF27-WSS1.1KW,WXFAF27-WSS1.5KW,WXFAF27-WSS100M4,WXFAF27-WSS2.2KW,WXFAF27-WSS63M4,WXFAF27-WSS71M4,WXFAF27-WSS80M4,WXFAF27-WSS90M4,WXFAF27-WSSB100M4,WXFAF27-WSSB63M4,WXFAF27-WSSB71M4,WXFAF27-WSSB80M4,WXFAF27-WSSB90M4,WXFAF27-WSSVP100M4,WXFAF27-WSSVP63M4,WXFAF27-WSSVP71M4,WXFAF27-WSSVP80M4,WXFAF27-WSSVP90M4,WXFAF27-WSSVPB100M4,WXFAF27-WSSVPB63M4,WXFAF27-WSSVPB71M4,WXFAF27-WSSVPB80M4,WXFAF27-WSSVPB90M4。平行軸斜齒輪減速機

FAF27減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.global-iic.com/product/list-fafxiliejiansuji-cn.html
